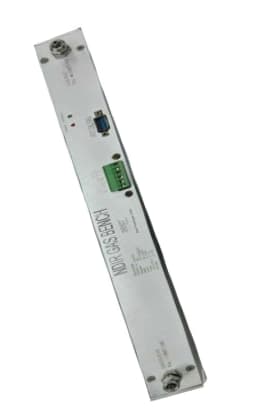

NDIR Gas Analyzer MGL Series

The MGL series NDIR gas analyser measures the concentration of several gases in a sample stream simultaneously. It is based on the single-source, two-beam non-dispersive infrared (NDIR) method using Micro-Flow NDIR technology, with a simple digital pulsed infrared source. Moisture in the flue gas does not affect the SO2 and NO readings, and the sampling flow does not affect SO2, NO, CO or CO2. The analyser is built as a 19-inch 4U rack or wall-mount unit and is used for emission flue gas, landfill gas, anaerobic digestion and other fermentation processes.

Features

• Single-source, two-beam NDIR measurement with Micro-Flow technology
• Dual measuring range
• Accuracy ±1% FS, linearity ±2% FS, repeatability ±2% FS, zero/span drift ±1% FS
• H2O in flue gas does not affect SO2 and NO measurement
• Sampling flow does not affect SO2, NO, CO and CO2 measurement
• CO and NO2 do not affect SO2 and NO measurement
• 4–20 mA analogue output and RS485 Modbus RTU
• 19-inch 4U panel and wall-mount versions

Applications

• Emission flue gas monitoring
• Glass factories
• Cement plants
• Coke ovens and sinter plants
• Lime factories
• Landfill, anaerobic digestion and fermentation processes

LKS supplies the MGL series NDIR gas analyser in Malaysia, with installation, calibration and after-sales support. Contact our engineers for gas selection and a quotation.
