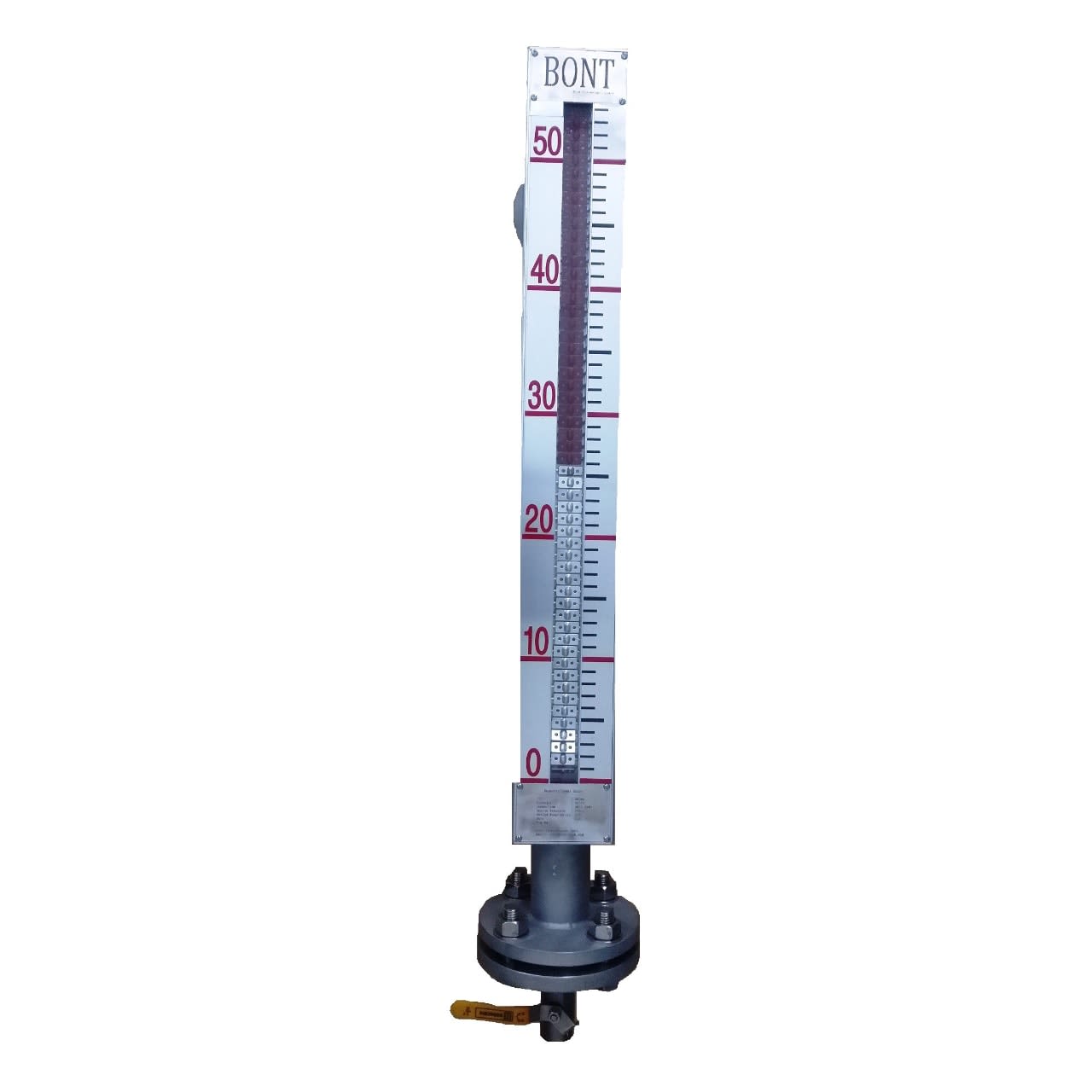

Magnetic Bypass Level Gauge
Magnetic bypass level gauge with SS304/SS316/PTFE body and magnetic bar graph for aggressive, combustible, toxic and hot liquids at low to high pressure.
- Brand
- Bont Technologies
- Provided by
- LKS West Instruments Sdn Bhd
- Category
- Level Gauge, Level Instruments, Level Transmitter
Overview
About the Magnetic Bypass Level Gauge.
Magnetic level gauges, also known as bypass level gauges, measure the level of aggressive, combustible, toxic and hot compressed liquids at low, medium and high pressures. A float containing a magnet moves up and down the tube, and its position shows the tank’s fluid level.
Features
- SS304/SS316/PTFE/PP body
- Hermetically sealed chamber with no contact with the medium
- Magnetic bar graph
- Scale in cm or custom make
- with red & white aluminum flapper
- Custom make length & process connection
- Optional output 4-20mA, switch & alarm system
Applications
- Boilers
- Surge vessels and deaerators
- Surge tanks
- Oil/water separators
- Feed water heaters
- Propane vessels
- Alkylation tanks
- Chemical tanks
Lifecycle support
Installed, calibrated and maintained.
With more than two decades in valves and instrumentation across a diverse range of industries, we keep instruments accurate and valves healthy, because valve health management is vital for plant safety.
- Installation & commissioning
- Calibration & testing
- Maintenance & overhaul
- Dismantling & replacement
